Subsurface Clarity for Confident CO₂ Injection
Carbon capture and sequestration projects depend on precise placement of injection intervals within stable, high-quality reservoir zones.
ZoneVu® brings your subsurface data together into one system – so your team can see clearly, align across disciplines, and confidently select the right interval for CO₂ injection.
A Unified View of the Subsurface
ZoneVu connects live drilling data, seismic, well logs, and coring data into a single, shared environment.
As wells are drilled, data streams directly from the rig and is integrated in real time – giving your team immediate visibility into formation changes and reservoir conditions.
Entire subsurface teams can work from the same view across:
3D visualization
Cross-section
Map view

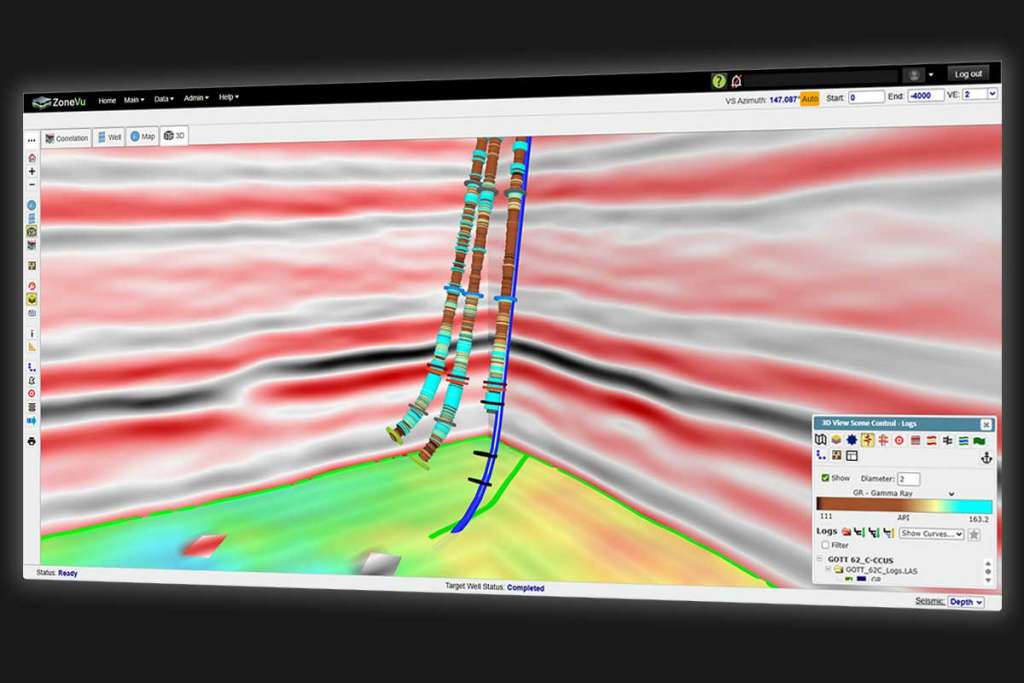

Real-Time Seismic and Drilling Integration
As drilling progresses, logging data streams into ZoneVu and aligns with seismic interpretation and coring data.
This allows teams to:
- Validate structural position of the wellbore
- Understand dip and thickness changes
- Confirm the well remains within the target injection interval

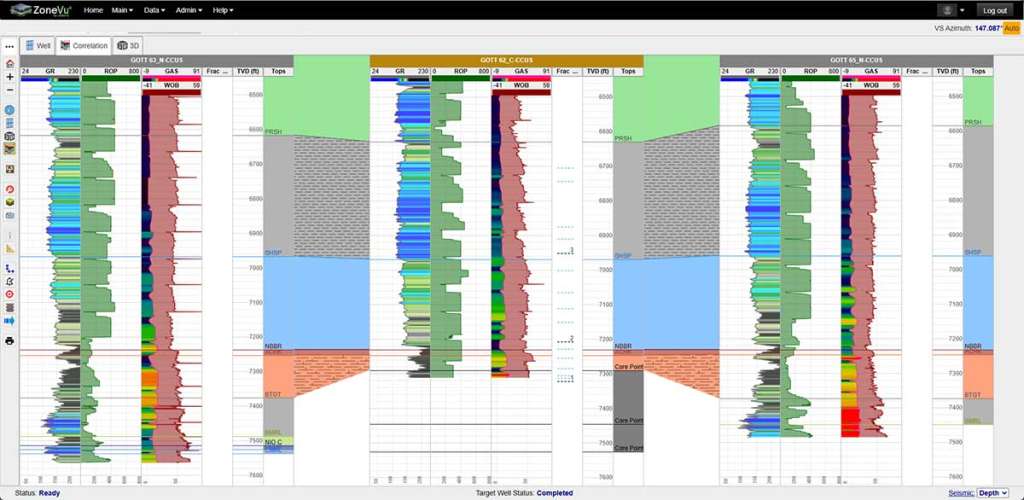

Stratigraphic Alignment with Core and Logs
ZoneVu allows teams to correlate and visualize logs, formation tops, and core points in one place.
- Align coring results with log signatures
- Confirm stratigraphic continuity across wells
- Identify optimal injection intervals and place plug locations accurately
This ensures CO2 injection is placed within the most suitable reservoir zone while maintaining caprock integrity.

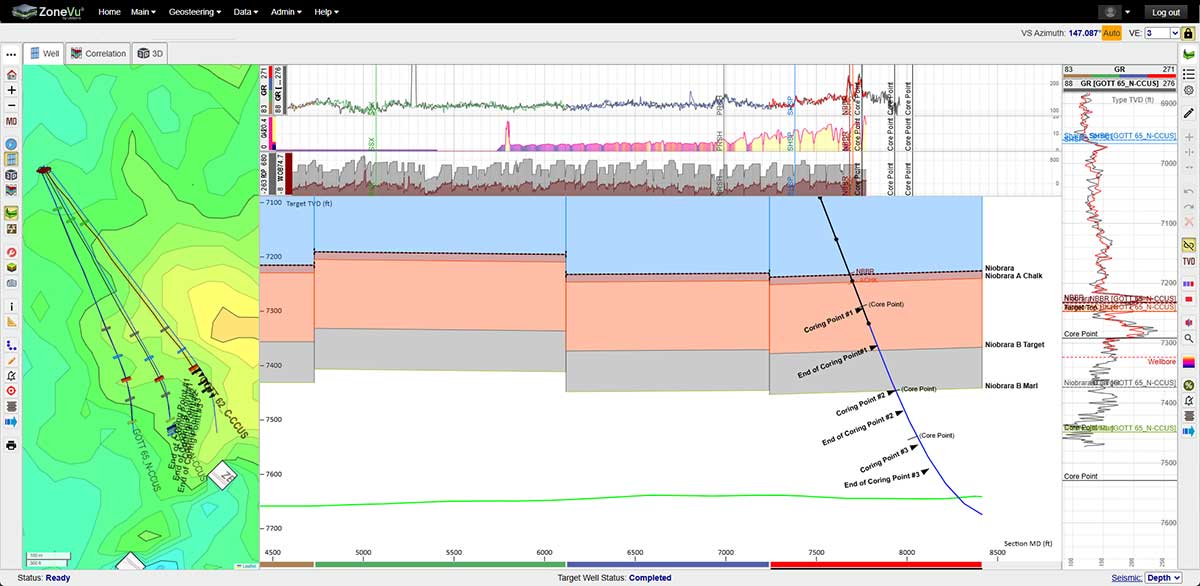

Multi-View Understanding Across the Field
ZoneVu provides a combined map and cross-section view of your project area, integrating:
- Well trajectories
- Depth grids
- Core locations
- Formation tops
Rapidly evaluate lateral consistency and reservoir quality across the storage interval.
Built for Collaboration
CCS projects involve multiple stakeholders — operators, partners, regulators, and consultants — often working across locations and time zones.
ZoneVu enables the whole team to work from the same live subsurface view.
Unlimited users
No seat limits for extended project teams
Real-time collaboration
Interpretations and data visible to all authorized users instantly
Accessible from anywhere
Browser-based, no installs, no VPN required
What CCS Teams Gain with ZoneVu
By integrating drilling data, seismic, logs, coring data, and injection design into one system, ZoneVu helps CCS teams:
- Confidently identify optimal injection intervals
- Improve project safety and containment
- Reduce uncertainty across the subsurface
- Make faster, more informed decisions
